AppleCD is a range of SCSI-based CD-ROM drives for Apple Macintosh personal computers, manufactured and sold by Apple Computer from the late 1980s to late 1990s. Earlier AppleCD drives required a CD caddy in order to be used, while later models used a tray-loading mechanism. Apple - MacBook Pro - 16' Display with Touch Bar - Intel Core i7 - 16GB Memory - AMD Radeon Pro 5300M - 512GB SSD (Latest Model) - Silver Model: MVVL2LL/A SKU: 6366575.
Sharing discs

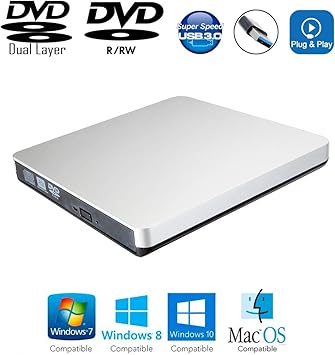

If your Mac doesn't have a built-in optical drive and you need to use a CD or DVD, you can connect an external drive like the Apple USB SuperDrive. You can also share discs from the optical drive of another Mac, or from a Windows computer that has DVD or CD Sharing Setup installed. DVD or CD sharing allows you to access documents stored on these discs, and allows you to install some software.
DVD or CD sharing isn't designed for some kinds of optical media. Connect a compatible optical drive directly to your Mac if you need to use one of these discs:
- Audio CDs
- Blu-ray or DVD movies
- Copy protected discs (such as some game discs)
- Recordable CDs or DVDs that you want to burn or erase
- Microsoft Windows installation discs
If you have a Microsoft Windows install disc that you want to use with Boot Camp, you can create a disc image of this disc and copy it to a USB flash drive for installation instead.
Setting up a Mac to share discs
To share discs from a Mac that has a built-in or external optical drive, use these steps:
- On the Mac that has an optical drive, choose System Preferences from the Apple menu.
- Click the Sharing icon in the System Preferences window.
- Make sure you've entered a name that you can easily recognize in the Computer Name field.
- Enable the checkbox for DVD or CD Sharing.
- You can also restrict who has access to your optical drive by selecting 'Ask me before allowing others to use my DVD drive.'
Setting up a Windows PC to share discs
Best Apple Mac To Buy
To share discs from a Windows PC that has a built-in or external optical drive, use these steps:
- Download and install DVD or CD Sharing Update 1.0 for Windows.
- From Control Panel, open 'Hardware and Sound'
- Click 'DVD or CD Sharing Options.'
- Select the checkbox for DVD or CD Sharing.
- You can also restrict who has access to your optical drive by selecting 'Ask me before allowing others to use my DVD drive.'
If you're sharing discs from a Windows computer and your PC has firewall software enabled, be sure to allow access to the following programs from your firewall:
- ODSAgent
- RemoteInstallMacOSX
Use a shared DVD or CD
After you've enabled DVD or CD Sharing, you can use that computer's optical drive at any time. Insert a disc in the optical drive of the computer that's being shared. The disc should then be available on any Mac that's connected to the same network.
- On the Mac that doesn't have an optical drive, open a Finder window.
- Select Remote Disc in the Devices section of the sidebar. You should see the computer that has DVD or CD Sharing enabled.
- Double-click the computer's icon, then click Connect to see the contents of the CD or DVD available from that computer.
If you can't use a shared disc
If your Mac already has a built-in optical drive, or an external optical drive connected, you won't see the Remote Disc feature appear in the Finder or other apps.
If you're using a compatible disc and you don't see it from Remote Disc, make sure the sharing computer is turned on, is connected to the same network as your Mac, and has a compatible CD or DVD in its optical drive. If you've enabled the option to ask for permission before using the drive, click Accept on the computer that is sharing its optical drive.
Which mac computer to buy. Apple discontinued its 12-inch laptop in July 2019. You may be able to buy one in Apple’s Refurbished and Clearance Store, but supplies won’t last long. 13-inch models.
AppleCD is a range of SCSI-based CD-ROM drives for Apple Macintoshpersonal computers, manufactured and sold by Apple Computer from the late 1980s to late 1990s. Earlier AppleCD drives required a CD caddy in order to be used, while later models used a tray-loading mechanism. The original model introduced in 1988 was simply called the AppleCD SC.[1] There was also a version of the CD drive that did not have the Apple logo.
AppleCD SC[edit]
The AppleCD SC was the first CD-ROM by Apple Computer Company, introduced in 1988. It originally contained a fan but in 1990 they removed it because it was unneeded and attracted dust onto the optical disk head which could cause problems. It uses a front-loading caddy 1x CD-ROM and is only capable of Read Only Media. This accessory device was only able to read compact discs up to a 650 MB capacity in five formats, CD-Audio, CD-ROM, HFS, ProDOS, and High Sierra. On the front of the device it has an eject button, mini-phono sound out jack, and a volume knob. On the rear it has a power switch, power input, two Centronics 50-pin SCSI outputs, and an audio RCA connector. With appropriate software it would run on any Macintosh with a DB-25 connector, or an Apple II with an Apple II SCSI interface card.
AppleCD SC Plus[edit]
The AppleCD SC Plus was Apple Computer's second CD-ROM drive, a replacement for the AppleCD SC which was introduced in 1991. It had the model number M3021, and it had just like its predecessor, the AppleCD SC and it had a 1x Read Only Media CD-ROM. The Plus could read a CD with up to 750 MB of data over the 650 MB of the AppleCD SC. It had indicator lights, an eject button, mini-phone audio jack, volume knob, and the CD caddy drive on the front of the accessory. On the back there were two 50-pin Centronics SCSI connectors, audio RCA connectors, power input, and a power switch. The AppleCD SC Plus had only minor improvements over the AppleCD SC and it was relatively the same.
Several other models were made, including the 150, 300, 300e, 300i Plus, 300e Plus, 600i, 600e Plus and 1200i ('e' representing an external drive, and 'i' representing internal; model number also represents data reading speed in KB/s). They all include two Centronics 50-pin SCSI ports, and require mains power.
References[edit]
Apple Mac Cd Drive
- ^AppleCD SC: Fan Deleted in 1990[permanent dead link]
- Notes
- Vectronic's Apple World https://web.archive.org/web/20130521042339/http://www.vectronicsappleworld.com/collection/macdrives.html.%3Cref%3EVectronic%27s Collection External Macintosh Drives, 6/05/14, 'Archived copy'. Archived from the original on 2013-05-21. Retrieved 2014-06-06.CS1 maint: archived copy as title (link)</ref>
- Apple Rescue Of Denver http://www.applerescueofdenver.com/products-page/all-products-apple-ii/applecd-sc-plus-ss1380z/.[1]
- ^Apple Rescue Of Denver AppleCD SC Plus, 6/06/14,http://www.applerescueofdenver.com/products-page/all-products-apple-ii/applecd-sc-plus-ss1380z/
